Information reported as summary result - CableIQ

CableIQ™ 2014-01-28

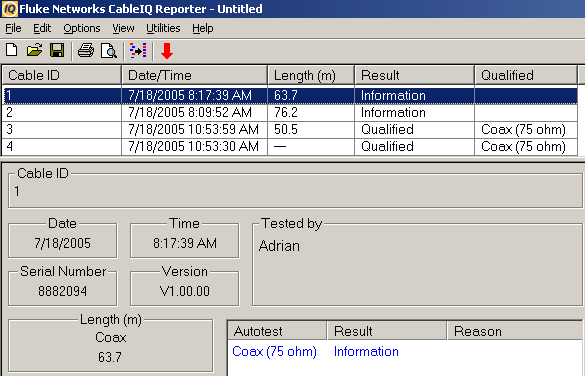

If you see Information as shown below:

CableIQ Reporter Summary Result

This is caused by the far end adapter not be connected or recognized.

You will also notice that CableID 4 has no length reported. This coax link was either terminated with a 75 ohm resistor or the length was in excess of 1,000 ft. Since the CableIQ does not have a limit for Length when testing coaxial cable, it will report Qualified.
