Category 6A / Class Ea Permanent Link accuracy for the DSX CableAnalyzer

DSX CableAnalyzer™ Series 2014-02-20

The DSX-5000 CableAnalyzer exceeds the Level IIIe accuracy requirements of ANSI/TIA-1152 and IEC 61935-1 Ed.4 (draft) for Category 6A & Class EA Permanent Link measurements.

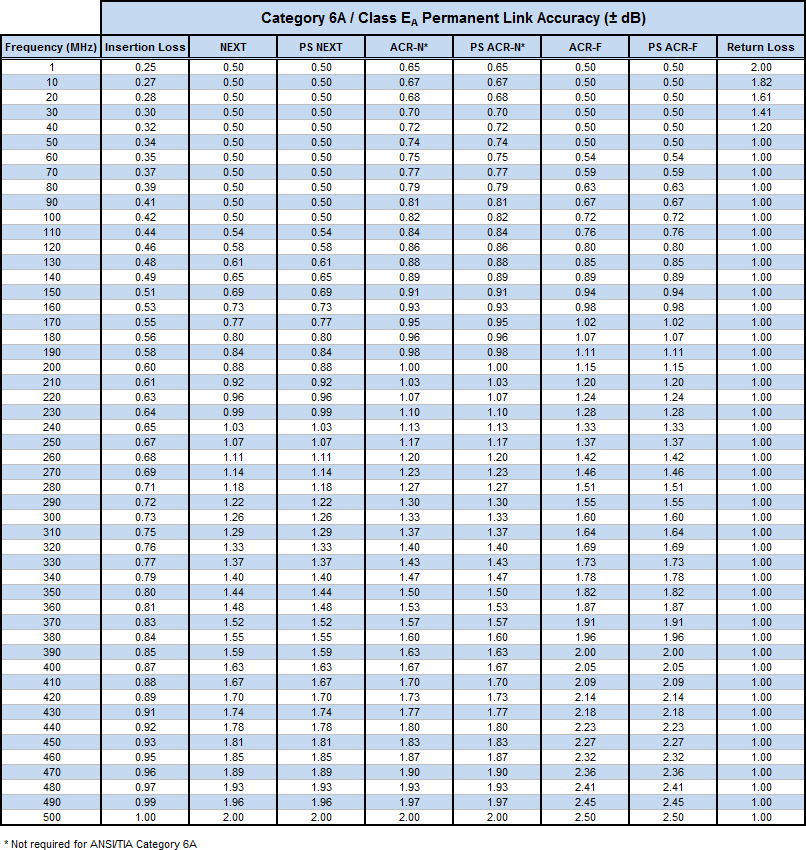

ANSI/TIA-1152 and IEC 61935-1 Ed.4 require the test equipment vendor to mark frequency based measurements with an asterisk (*) if they fall within the nominal accuracy of the test equipment. The table below details the DSX-5000 CableAnalyzer nominal accuracy for ANSI/TIA-568-C.2 Category 6A and ISO/IEC 11801:2010 Edition 2.0 Class EA Permanent Link measurements.

You can click on this table to download detailed frequency information for each parameter.

DSX CableAnalyzer Category 6A Class Ea Permanent Link Accuracy
