Class F Permanent Link accuracy for the DSX CableAnalyzer

DSX CableAnalyzer™ Series 2014-02-20

The DSX-5000 CableAnalyzer exceeds the Level IV accuracy requirements of IEC 61935-1 Ed.4 (draft).

IEC 61935-1 Ed.4 requires the test equipment vendor to mark frequency based measurements with an asterisk (*) if they fall within the nominal accuracy of the test equipment. The table below details the DSX-5000 CableAnalyzer nominal accuracy for ISO/IEC 11801:2010 Edition 2.0 Class F Permanent Link measurements in accordance with Annex A.3 of IEC 61935-1 Ed.4.

You can click on this table to download detailed frequency information for each parameter.

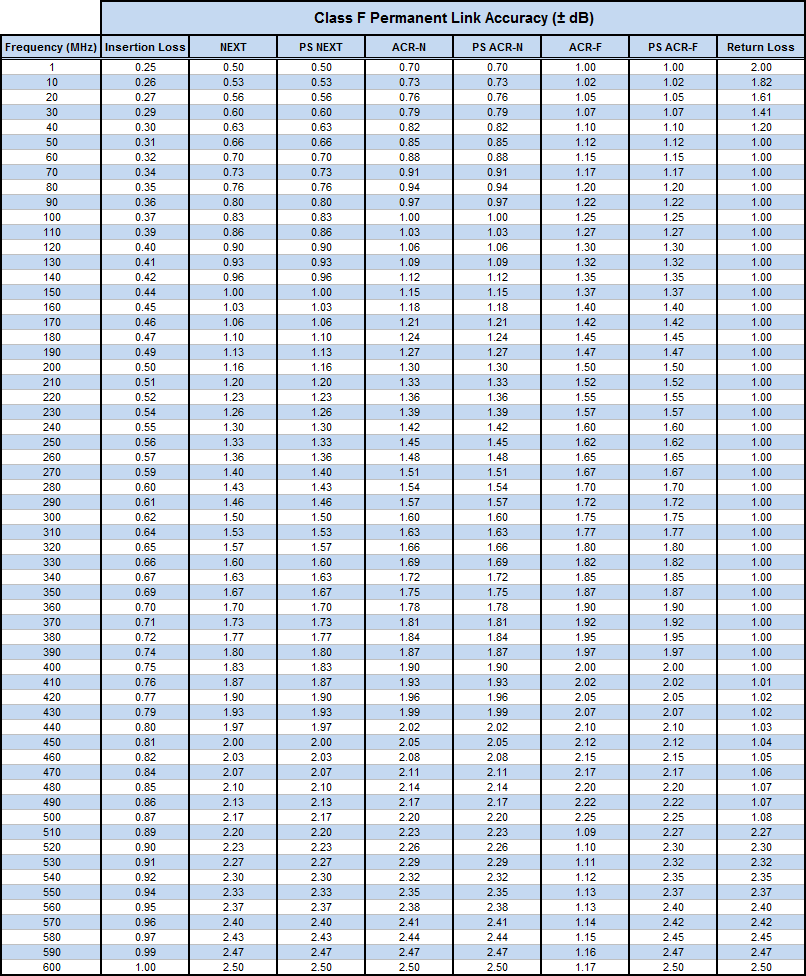

DSX CableAnalyzer Class F Permanent Link Accuracy
