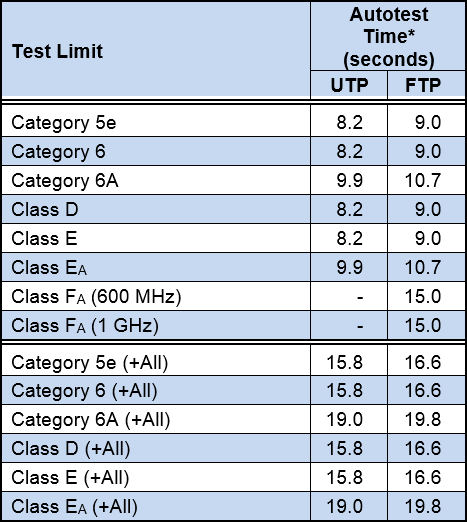

The biggest time savings come from setting the DSX CableAnalyzer up in advance using ProjX™, which prevents the technician from testing to the incorrect test limit etc. F/UTP and S/FTP links take ≈ 0.8 seconds longer to test than U/UTP links due to the addition of a unique shield integrity test.
Notes:
- The first Autotest after powering up will take an additional 1.5 to 2.3 seconds as it retrieves the calibration constants from the remote unit.
- Autotest test times stated are ± 0.1 seconds
- Where (+All) adds Resistance Unbalance, TCL, ELTCTL, CDNEXT and CMRL to the test
