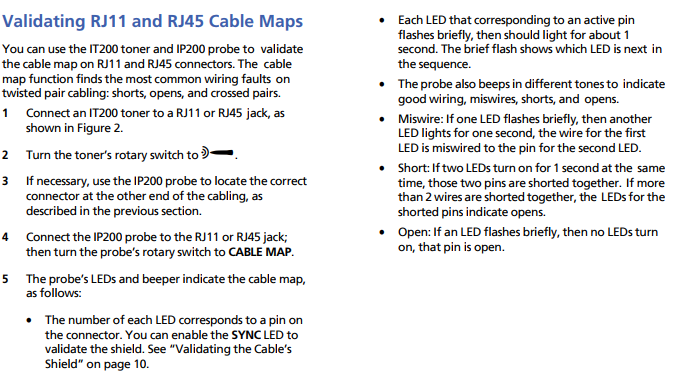

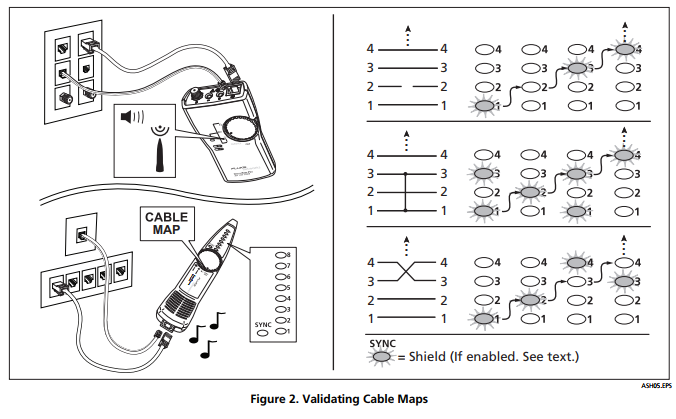

The IntelliTone 200 Probe and Toner kit includes Cable Map capability. The instructions below are taken from the IntelliTone Pro 200 LAN Users Manual.
Note:

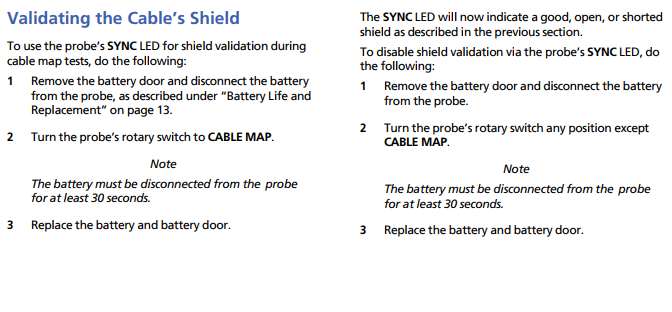

After changing the battery on the IntelliTone Probe, you may notice that the SYNC LED is red after a cable test. If this happens when you are testing UTP cable, follow the steps below to disable the shield validation.
