Volatility statement for the Versiv/TFS platform

Date: June 17, 2013

Statement of Memory Volatility
Models: DSX-5000, CertiFiber Pro, OptiFiber Pro, OneTouch AT	Manufacturer: Fluke Networks
Address: 6920 Seaway Blvd.
City: Everett	State: WA	Zip: 98203	Phone: 800-283-5853

Volatile Memory
Does the item contain volatile memory (i.e., memory whose contents are lost when power is removed)? Yes
Sub-Item:	Memory Type (SRAM, DRAM, etc.):	Size:	User Modifiable:	Function:	Process to Clear:
TFS / Versiv Main	Mobile DDR	256 MB	Yes No	Program execution and data storage	Remove power (including battery) for at least 60 seconds.
TFS / Versiv Main	i.MX35 processor internal Cache	160 kB	Yes No	Operating system, program execution and data storage	Remove power (including battery) for at least 60 seconds.
TFS / Versiv Main	PIC16F883 internal SRAM	256 B	Yes No	Power supply management data storage	Remove power (including battery) for at least 60 seconds.
Versiv Remote	Mobile DDR	128 MB	Yes No	Program execution and data storage	Remove power (including battery) for at least 60 seconds.
Versiv Remote	i.MX35 processor internal Cache	160 kB	Yes No	Operating system, program execution and data storage	Remove power (including battery) for at least 60 seconds.
Versiv Remote	PIC16F883 internal SRAM	256 B	Yes No	Power supply management data storage	Remove power (including battery) for at least 60 seconds.
DSX-5000 CableAnalyzer Module	DSP internal SRAM	132 kB	Yes No	Program instruction and data storage	Remove power (including battery) for at least 60 seconds.
DSX-5000 CableAnalyzer Module	SRAM	2 MB	Yes No	Program instruction and data storage	Remove power (including battery) for at least 60 seconds.
OptiFiber Pro OTDR Module	STM32F103ZCH processor internal SRAM	48 kB	Yes No	Program data storage	Remove power (including battery) for at least 60 seconds.
OptiFiber Pro OTDR Module	FPGA SRAM	256 kB	Yes No	Measurement data sample storage	Remove power (including battery) for at least 60 seconds.
CertiFiber Pro Loss/Length Module	STM32F103ZCH processor internal SRAM	48 kB	Yes No	Program data storage	Remove power (including battery) for at least 60 seconds.
CertiFiber Pro Loss/Length Module	FPGA SRAM	4608 B	Yes No	Communication packet data storage	Remove power (including battery) for at least 60 seconds.
OneTouch AT Module	SDRAM	512 MB	Yes No	Program execution and data storage	Remove power (including battery) for at least 60 seconds.
OneTouch AT Module	K10 processor internal SRAM	64 kB	Yes No	Measurement data	Remove power (including battery) for at least 60 seconds.

Non-Volatile Memory
Does the item contain non-volatile memory (i.e., memory whose contents are retained when power is removed)? Yes
Sub-Item:	Memory Type (BBRAM, Flash, EEPROM, etc.):	Size:	User Modifiable:	Function:	Process to Clear:
TFS / Versiv Main	NOR Flash	128 MB	Yes No	Operating system, program storage, system logs, etc.	NA
TFS / Versiv Main	EEPROM	32 kB	Yes No	Boot configurations, MAC address, electronic ID (serial number, module type, production date, etc), system configuration, etc.	NA
TFS / Versiv Main	PIC16F883 internal Flash	4 k words	Yes No	Power supply management program storage	NA
TFS / Versiv Main	PIC16F883 internal EEPROM	256 B	Yes No	Not used	NA
Versiv Remote	NOR Flash	128 MB	Yes No	Operating system, program storage, system logs, etc.	NA
Versiv Remote	EEPROM	32 kB	Yes No	Boot configurations, MAC address, electronic ID (serial number, module type, production date, etc), system configuration, etc	NA
Versiv Remote	PIC16F883 internal Flash	4 k words	Yes No	Power supply management program storage	NA
Versiv Remote	PIC16F883 internal EEPROM	256 B	Yes No	Not used	NA
DSX-5000 CableAnalyzer Module	NOR Flash	4 MB	Yes No	Boot code, electronic ID (serial number, module type, production date, etc), and calibration data	NA
DSX Link Adapters	Flash	512 kB	Yes No	Electronic ID (serial number, link adapter type, production date, etc), usage counts and calibration data	NA
OptiFiber Pro Module	STM32F103ZCH processor internal Flash	128 kB	Yes No	Operating system, program execution, and electronic ID (serial number, module type, production date, etc)	NA
OptiFiber Pro Module	NOR Flash	2 MB	Yes No	FPGA configuration image	NA
OptiFiber Pro Module	EEPROM	4 kB	Yes No	Calibration data	NA
CertiFiber Pro Loss/Length Module	STM32F103ZCH processor internal Flash	128 kB	Yes No	Operating system, program execution, and electronic ID (serial number, module type, production date, etc)	NA
CertiFiber Pro Loss/Length Module	FPGA internal Flash	128 B	Yes No	Not used	NA
CertiFiber Pro Loss/Length Module	EEPROM	4 kB	Yes No	Calibration data	NA
OneTouch AT Module	NAND Flash	1 GB	Yes No	Module program and data storage	Restore OneTouch AT to Factory Defaults (see procedure in Appendix B).
OneTouch AT Module	EEPROM	4 kB	Yes No	Module settings, serial number, MAC address, etc	NA
OneTouch AT Module	K10 processor internal Flash	512 kB	Yes No	Cable test program storage	NA

Media
Does the item contain media storage capability (i.e., removable or non-removable disk drives, memory cards, etc.)? Yes
Sub-Item:	Storage Type (Disk, Tape, etc.):	Size:	User Modifiable:	Function:	Process to Clear:
TFS / Versiv Main	Internal microSD Flash card	2GB	Yes No	System settings, project settings, test result storage, user names, passwd, snmp strings, etc	Restore TFS / Versiv Main to Factory Defaults (see procedure in Appendix A). Restore OneTouch AT to Factory Defaults (see procedure in Appendix B).
TFS / Versiv Main	Removable USB devices	Variable	Yes No	Flash storage drive or keyboard / mouse connectivity	Cover port with evidence tape to ensure media devices are not used. If media is present, destroy storage media or perform multiple overwrites.
OneTouch AT Module	Internal microSD Flash card	2 GB	Yes No	Reports, profiles, screen shots, certificates, etc.	Restore OneTouch AT to Factory Defaults (see procedure in Appendix B).
OneTouch AT Module	Removable SD Flash card	Variable	Yes No	Capture storage and data transfer	Cover port with evidence tape to ensure media devices are not used. If media is present, destroy storage media or perform multiple overwrites.

Additional Information:

All of the DSX-5000, CertiFiber Pro (CFP), OptiFiber Pro (OFP), and OneTouch AT products can be configured into kits that can include some or all of the sub-items listed below:

TFS / Versiv Main
Versiv Remote
DSX-5000 CableAnalyzer Module
DSX Link Adapters (various)
CertiFiber Pro Loss/Length Module (various)
OptiFiber Pro OTDR Module (various)
OneTouch AT Module

Appendix A: TFS / Versiv Main Restore to Factory Defaults
If a OneTouch AT module is connected to the TFS / Versiv Main unit, remove that module from the main unit. Power up the TFS / Versiv Main while holding down the HOME key. Tap Tools followed by Memory Status and follow the instructions shown below.
1. Touch the parts of the screen in the order shown below.	2. You will then see a Restore Defaults button appear.	3. Tap this for a final warning about doing this.
The TFS / Versiv Main unit will then delete stored user data and restore the system to factory defaults before playing a tune and rebooting the system.

Appendix B: OneTouch AT Restore to Factory Defaults
Requires OneTouch AT version 2.0 software or later. With the OneTouch AT module connected to the TFS / Versiv Main unit, connect the AC adapter and power up the system then follow the procedure shown below.

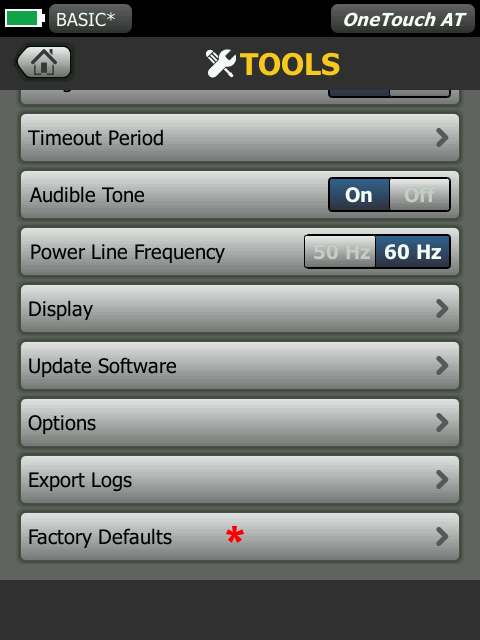

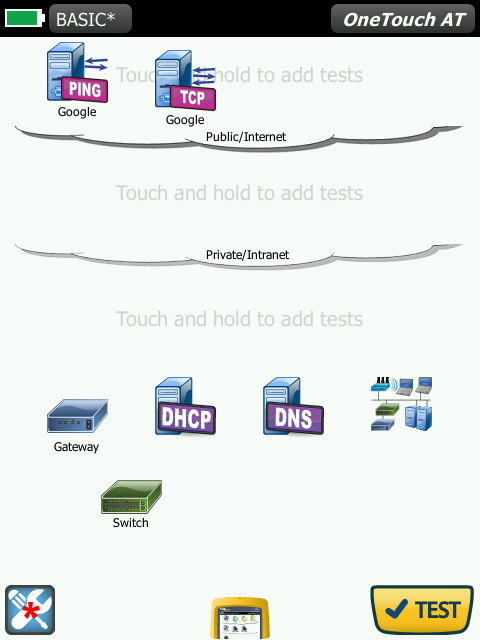

1. On the HOME screen tap the TOOLS icon	2. Scroll down to the Maintenance Tools section.	3. Tap Factory Defaults.	4. Tap the Full button.
The procedure may take as long as 30 minutes to complete. Do not interrupt the process while it is in progress.
