Fiber Tester Selection Guide
Fiber optics cabling is the core of today’s datacom networks. Optical fiber is the predominant media type for mission-critical datacenter links, backbone within buildings, and longer distances for campus networks. As network speeds and bandwidth demands increase, distance and loss limitations have decreased, making fiber optic cabling certification testing more important than ever.
Click on the product image to learn more

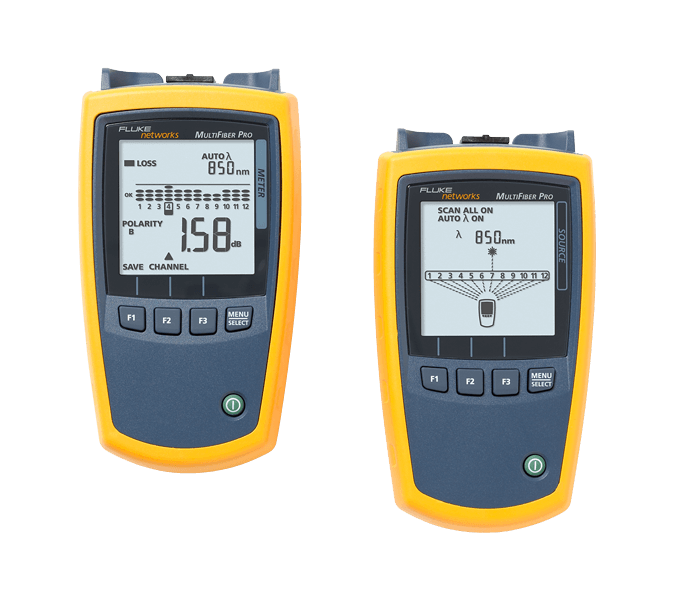

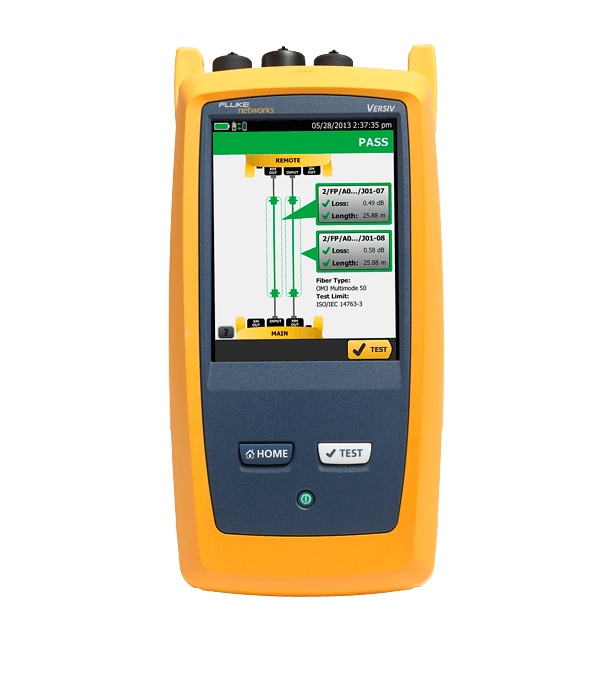

 FiberLert™ Live Fiber Detector |  VisiFault™ Visual Fault Locator |  Fiber QuickMap™ |  SimpliFiber® Pro Test Kits |  OptiFiber® Pro OTDR | CertiFiber® Pro OLTS |  MultiFiber™ Pro MPO Power Meter | |
|---|---|---|---|---|---|---|---|
| One button operation | ✓ | ✓ | ✓ | ||||
| Locate faults | ✓ | ✓ | ✓ | ||||
| Fiber length | ✓ | ✓ | (pairs) | ||||
| Check connectivity | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Check polarity | ✓ | ✓ | ✓ | ✓ | ✓ | ✓ | |
| Optical power measurement | ✓ | ✓ | ✓ | ||||
| Encircled flux compliant | ✓ | ✓ | ✓ | ||||
| Dual-fiber loss testing | ✓ | ✓ | |||||
| MPO fiber testing | ✓ | ✓ | |||||
| Pass/fail results | ✓ | ✓ | ✓ |

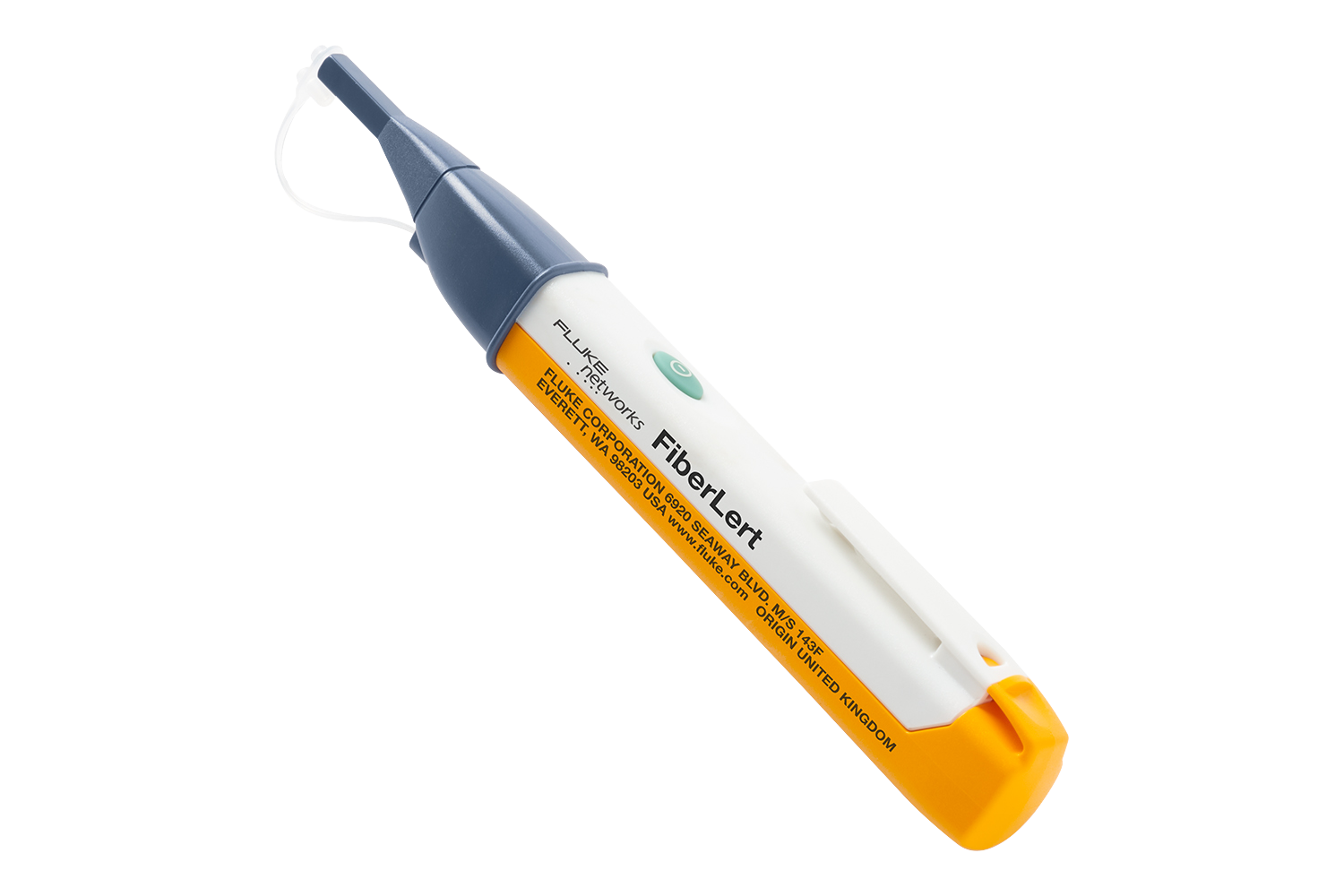

FiberLert™ Live Fiber Detector
Detects active fiber signals for testing ports, cables and polarity.
- Detects optical power in single-mode and multimode fiber wavelengths (near infrared range 850 to 1625 nm)
- No setup or interpretation needed – light and sound indicate presence of optical signal
- “Non-contact” detector reduces the risk of contamination and damage; suitable for ports and patch cords, SM, MM, UPC and APC connections
- LightBeat™ flashes to indicate operation and battery status; powers off after five minutes to preserve battery (2xAAA, included)
- Two-year warranty
| Most Popular | Models | Description | Buy Now |
|---|---|---|---|
| | FIBERLERT-125 | FiberLert, 850 NM TO 1625 NM LIVE FIBER DETECTOR |
For more information about FiberLert™ Live Fiber Detector, click here.

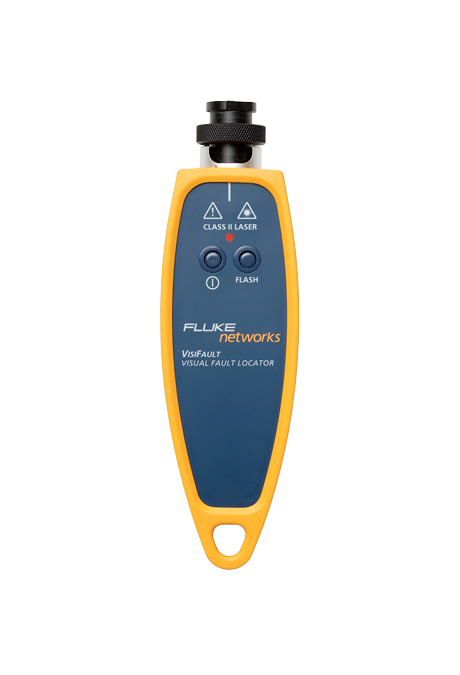

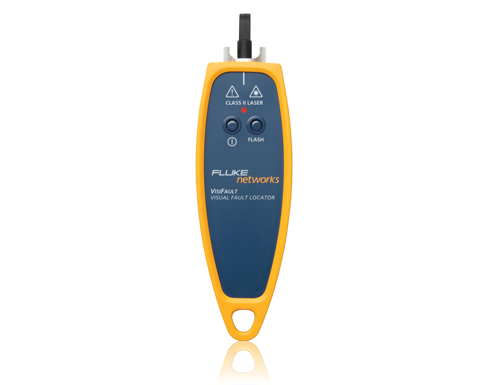

VisiFault™ Visual Fault Locator - Cable Continuity Tester
Locates fibers, finds faults, verifies continuity and polarity.
- Locates visual faults including tight bends, breaks and bad connectors
- Easily verifies polarity and identifies fibers
- Features continuous and flashing modes
- Ergonomic case survives drops, impacts and vibrations
| Most Popular | Models | Description | Buy Now |
|---|---|---|---|
 | VisiFault | VisiFault Visual Fault Locator with 2.5mm universal adapter |
For more information about VisiFault™ Visual Fault Locator, click here.

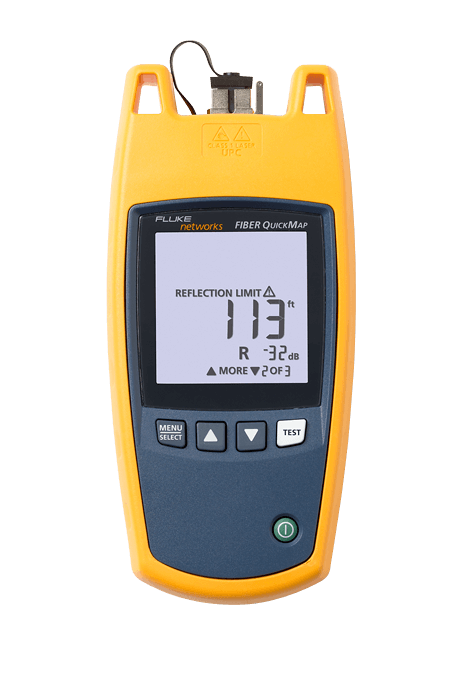

Fiber QuickMap™
MultiMode Fiber Distance and Fault Locator.
- Quickly and efficiently locate connections and breaks in multimode fiber
- No setup required - connect your fiber and press “Test”
- Six-second test time—no more blind troubleshooting that can waste hours
- Large backlit display shows loss in dB and distance in meters or feet
- Tests 50/125µm and 62.5/125µm multimode fiber up to 1,500 meters / 4,921 feet
| Most Popular | Models | Description | Buy Now |
|---|---|---|---|

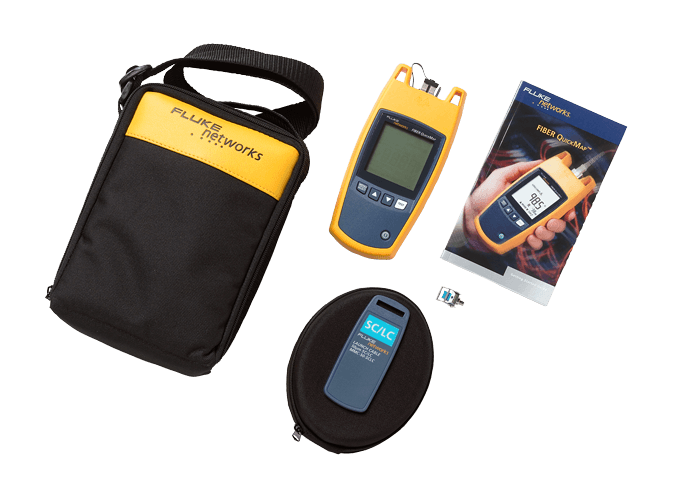

| | FQM-KIT | Fiber QuickMap mainframe with SC/LC 50 µm Launch Fiber and carrying pouch. |
For more information about Fiber QuickMap™, click here.
Fiber Launch and Tail Cables
Launch & tail cables are designed to be used in conjunction with an OTDR to characterize a fiber link.
- Rugged, convenient zipper case, designed for use with our T-Pak magnetic / hanger / hook and loop strap
- Features the Durable Fluke Metal LC connector
- Terminated with reference grade connectors in accordance with standards
- Multimode (62.5 µm and 50 µm) or Single-mode (9 µm) kits
- Supports LC, SC, ST, FC, LC-APC, SC-APC and E2000-APC connections
- Cord length: 105 m (MM), 160 m (SM)
| Most Popular | Models | Description | Buy Now |
|---|---|---|---|

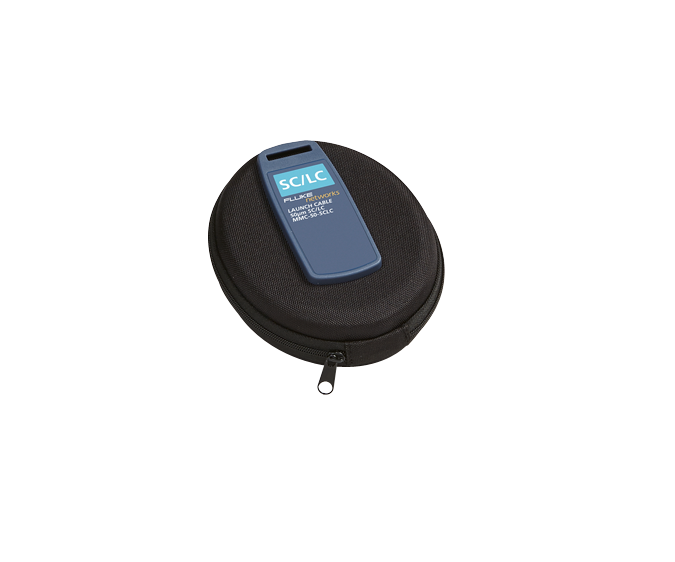

| | MMC-50-SCLC-M | MULTIMODE 50UM LAUNCH CABLE 105M (SC/LC), METAL | |

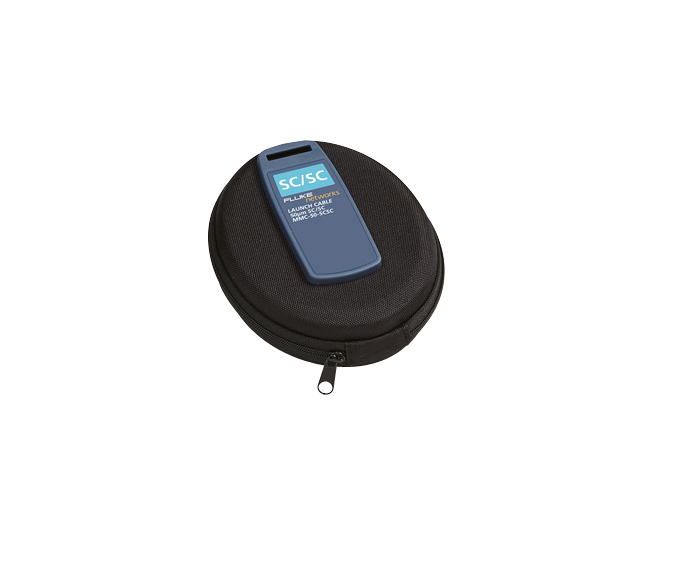

 | MMC-50-SCSC | MULTIMODE LAUNCH CABLE 50UM SC/SC | |

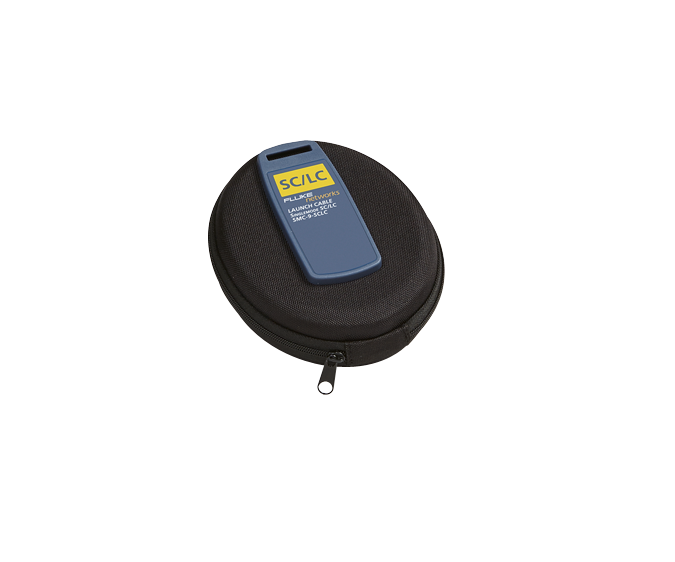

 | SMC-9-SCLC | SINGLEMODE LAUNCH CABLE 160M, SC/LC | |
 | SMC-9-SCSC | SINGLEMODE LAUNCH CABLE 160M, SC/SC |
For more information about Fiber Launch and Tail Cables, click here.

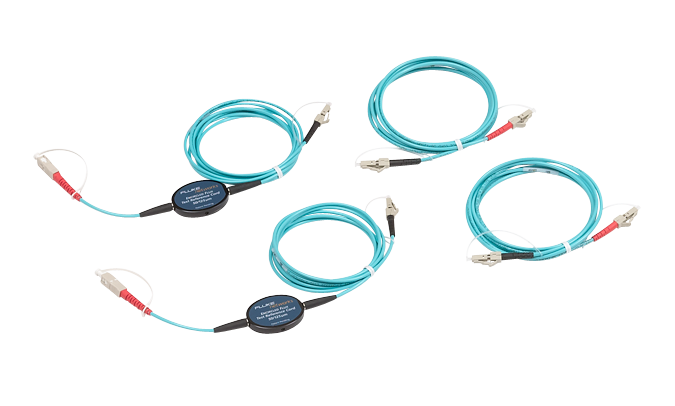

Fiber Test Reference Cords
Test reference cords (TRCs) are used for certifying cabling systems in accordance with standards.
- Color Coded for Use with CertiFiber™ Pro: Reduces Setup Errors
- Features the Durable Fluke Metal LC connector
- Reference grade connectors
- Multimode TRCs are used in conjunction with Fluke Networks Encircled Flux multimode compliant sources
- Kits available for Multimode (62.5 µm and 50 µm) or Single-mode (9 µm)
- Supports LC, SC, ST, FC, LC-APC, SC-APC and E2000-APC
- Each kit contains 4 each, 2 m cords
| Most Popular | Models | Description | Buy Now |
|---|---|---|---|
| | MRC-50EFC-SCLCKIT-M | MULTIMODE 50UM EF TRC KIT EM (2 SC/LC, 2 LC/LC), METAL | |

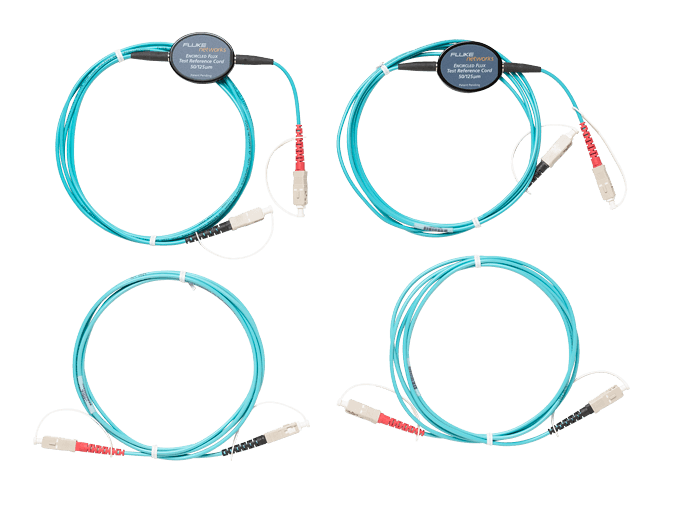

 | MRC-50EFC-SCSCKIT | Multimode Encircled Flux compliant test reference cord kit (2m) for testing 50um SC terminated fibers. Contains 4 SC/SC TRCs | |

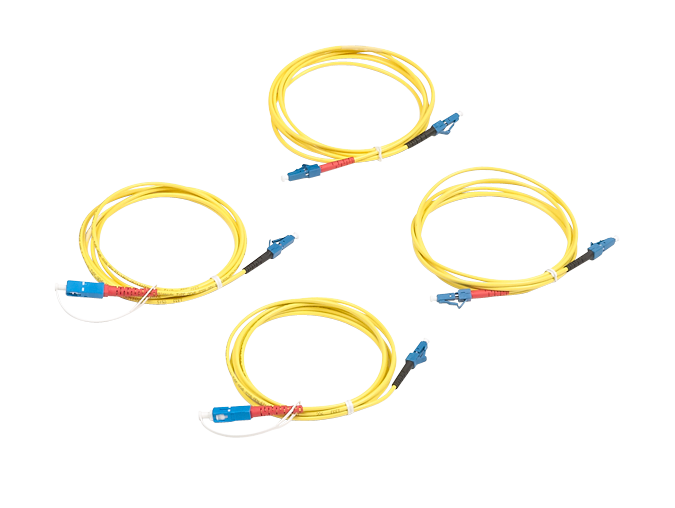

 | SRC-9-SCLC-KIT-M | SINGLEMODE TRC KIT 2M (2 SC/LC, 2 LC/LC), METAL | |

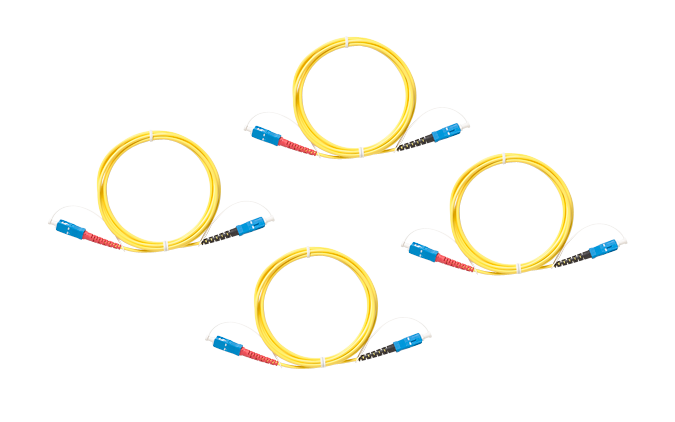

 | SRC-9-SCSC-KIT | Singlemode test reference cord kit (2m) for testing SC terminated fibers. Contains 4 SC/SC TRCs |
For more information about Fiber Test Reference Cords, click here.

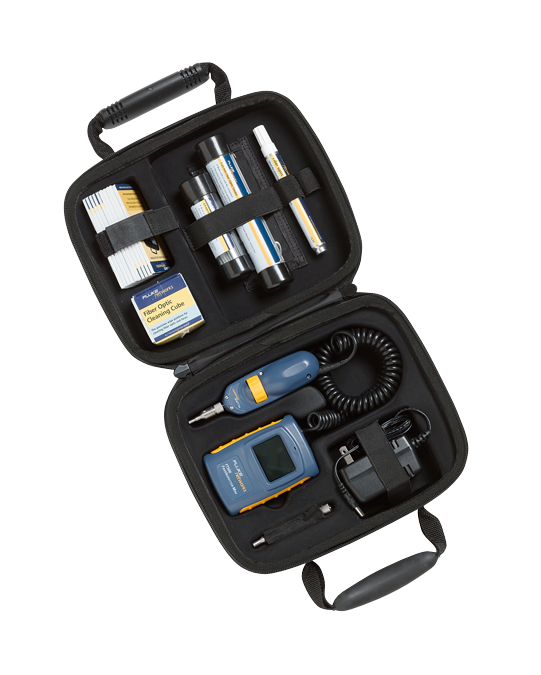

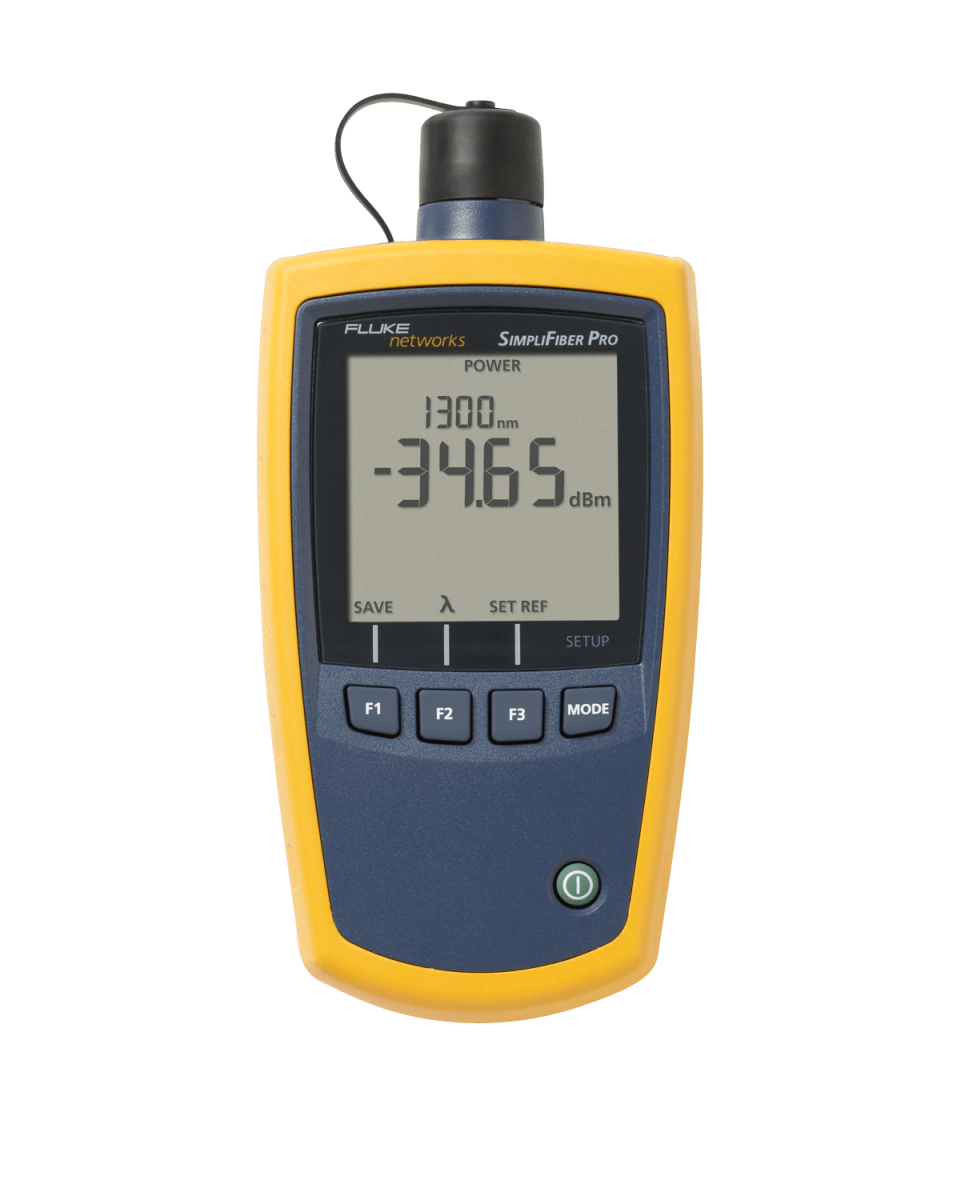

SimpliFiber® Pro Optical Power Meter and Fiber Test Kits
Multimode and Singlemode Power and Loss Measurements.
- Fiber-loss tester with advanced time-saving features.
- Multiple kit configurations with light sources for single mode, multimode and PON fiber optics.
- Single-port, simultaneous dual-wavelength feature completes testing in half the time and saves measurements from both wavelengths into one record
- Min/Max capability automates tracking of intermittent power fluctuations
| Most Popular | Models | Description | Buy Now |
|---|---|---|---|
 | FTK1475 | FI-500 with SimpliFiber Pro Multimode & Singlemode PMLS, VisiFault, 2 FindFibers, Cleaning kit (NFC-KIT-BOX) and 1.25 mm Swabs | |

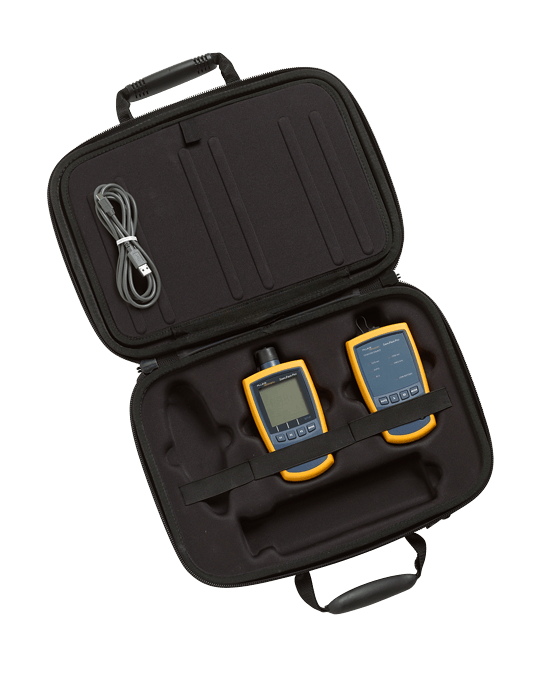

 | FTK1000 | Multimode Fiber Verification Kit – Includes SimpliFiber Pro optical power meter, 850/1300 multimode source, carrying case, and SC power-meter adapter |
For more information about SimpliFiber® Pro Optical Power Meter and Fiber Test Kits, click here.
